Dynamo 核心概念#

建立時間：2025 年 7 月 28 日 | 最後更新時間：2025 年 7 月 28 日

摘要

  • Dynamo 是 torch.compile 的前端，它執行跟蹤 (tracing) 以將 Python 函式（及其巢狀函式呼叫）的語義捕獲到一系列線性操作（即“(FX) 圖”）、剩餘位元組碼和“守衛”（一組圖和位元組碼有效的條件列表）。

  • 不支援的 Python 功能會導致圖中斷 (graph breaks)，此時 Dynamo 會編譯從跟蹤中獲得的區域性圖，然後執行不支援的程式碼，之後在不支援的程式碼之後恢復跟蹤。

  • 圖中斷可能導致 torch.compile 效能下降，並阻止後端最佳化機會。如果您未獲得預期效能，請檢查圖中斷。

Dynamo 跟蹤#

torch.compile 的前端 (Dynamo) 是一個自定義的 Python 位元組碼直譯器，旨在允許在 PyTorch 程式中進行圖編譯，同時保留 Python 的全部靈活性。給定一個要編譯的函式，Dynamo 會解釋 Python 位元組碼，將一系列 PyTorch 操作提取到 1 個或多個 FX 圖中，這些圖可以由後端進一步最佳化。

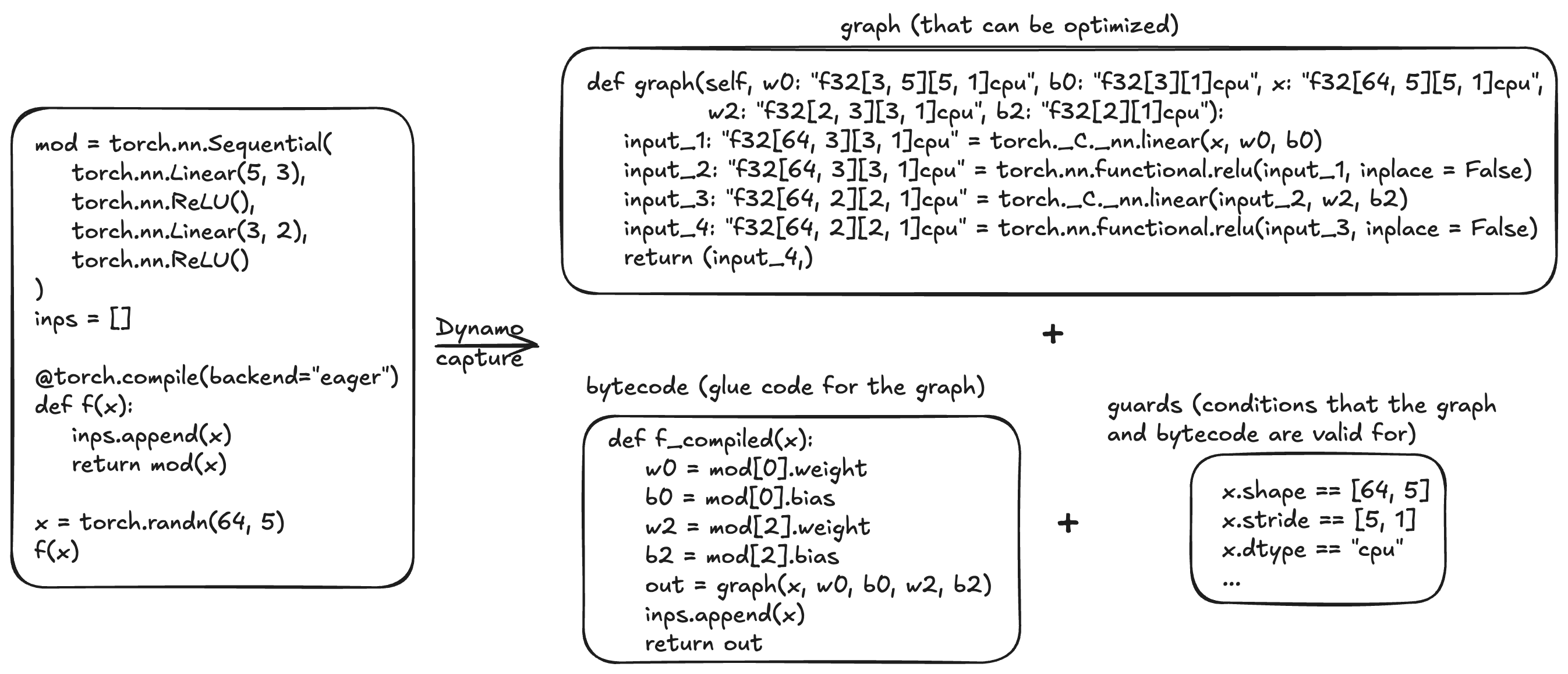

Summary diagram of Dynamo

例如，對於上面圖示中的函式 f，Dynamo 會生成

  • 一個接受原始輸入以及函式所需的其他一些輸入的FX 圖。

  • Python 位元組碼，可用作 f 的直接替代。在我們的示例中，位元組碼會檢索其他輸入並將其傳遞給圖，並且還包含無法最佳化的 Python 副作用（列表追加）。

  • 守衛 (guards)，它們指定圖和位元組碼有效的條件。除非另有說明，否則 Dynamo 生成的圖會針對輸入 Tensor 的形狀進行專門化。

圖中斷#

Dynamo 會跟蹤您的程式碼，並嘗試將您的 PyTorch 程式碼捕獲到一個 PyTorch 運算子的計算圖中（FX 圖）。然而，這並非總是可能的。當遇到無法跟蹤的程式碼時，會發生“圖中斷 (graph break)”。在預設的 torch.compile 設定中，圖中斷包括編譯到目前為止確定的 FX 圖，在常規 Python 中執行不支援的程式碼，然後在新 FX 圖中恢復跟蹤。

圖中斷是一項功能，它允許 Dynamo 執行任意 Python 程式碼，並切分出可以單獨最佳化的功能性子圖。

但是，圖中斷可能會導致 torch.compile 出現意想不到的效能下降。如果您未獲得預期的加速，我們建議您檢查圖中斷並將其移除。

圖中斷可能發生在以下情況：

  • 依賴資料的 if 語句

  • 許多 Python 內建函式

  • C 函式

下面是一個由於呼叫不支援的操作 torch.save 而導致的圖中斷示例。

@torch.compile
def f(x):
   y = x ** 2  / 2
   torch.save(y, "foo.pt")  # torch.save is an unsupported operation
   z = y ** 3 / 6
   return z

x = torch.randn(3)
print(f(x))

tensor([6.4034e-07, 2.4362e-15, 3.6929e+00])

Graph break in user code at /tmp/ipykernel_699/215272159.py:4
Graph Break Reason: Attempted to call function marked as skipped
  Explanation: Dynamo developers have intentionally marked that the function `save` in file `/opt/conda/envs/py_3.10/lib/python3.10/site-packages/torch/serialization.py` should not be traced.
  Hint: Avoid calling the function `save`.
  Hint: Apply `@torch._dynamo.dont_skip_tracing` to the function `save` to force tracing into the function. More graph breaks may occur as a result of attempting to trace into the function.
  Hint: Please file an issue to PyTorch.

  Developer debug context: module: torch.serialization, qualname: save, skip reason: <missing reason>

 For more details about this graph break, please visit: https://meta-pytorch.github.io/compile-graph-break-site/gb/gb0007.html
User code traceback:
  File "/opt/conda/envs/py_3.10/lib/python3.10/runpy.py", line 196, in _run_module_as_main
    return _run_code(code, main_globals, None,
  File "/opt/conda/envs/py_3.10/lib/python3.10/runpy.py", line 86, in _run_code
    exec(code, run_globals)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel_launcher.py", line 18, in <module>
    app.launch_new_instance()
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/traitlets/config/application.py", line 1075, in launch_instance
    app.start()
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/kernelapp.py", line 739, in start
    self.io_loop.start()
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/tornado/platform/asyncio.py", line 211, in start
    self.asyncio_loop.run_forever()
  File "/opt/conda/envs/py_3.10/lib/python3.10/asyncio/base_events.py", line 603, in run_forever
    self._run_once()
  File "/opt/conda/envs/py_3.10/lib/python3.10/asyncio/base_events.py", line 1909, in _run_once
    handle._run()
  File "/opt/conda/envs/py_3.10/lib/python3.10/asyncio/events.py", line 80, in _run
    self._context.run(self._callback, *self._args)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 519, in dispatch_queue
    await self.process_one()
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 508, in process_one
    await dispatch(*args)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 400, in dispatch_shell
    await result
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 368, in execute_request
    await super().execute_request(stream, ident, parent)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 767, in execute_request
    reply_content = await reply_content
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 455, in do_execute
    res = shell.run_cell(
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/ipykernel/zmqshell.py", line 577, in run_cell
    return super().run_cell(*args, **kwargs)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3006, in run_cell
    result = self._run_cell(
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3061, in _run_cell
    result = runner(coro)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/IPython/core/async_helpers.py", line 129, in _pseudo_sync_runner
    coro.send(None)
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3266, in run_cell_async
    has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3445, in run_ast_nodes
    if await self.run_code(code, result, async_=asy):
  File "/opt/conda/envs/py_3.10/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3505, in run_code
    exec(code_obj, self.user_global_ns, self.user_ns)
  File "/tmp/ipykernel_699/215272159.py", line 9, in <module>
    print(f(x))
  File "/tmp/ipykernel_699/215272159.py", line 4, in f
    torch.save(y, "foo.pt")  # torch.save is an unsupported operation

torch.compile(f)(x) 的語義大致如下：

def compiled_f_semantics(x):
   y = torch.compile(g, fullgraph=True)(x)
   torch.save(y, "foo.pt")
   z = torch.compile(h, fullgraph=True)(x)
   return z

def g(x):
    return x ** 2  / 2

def h(x):
    return y ** 3 / 6

守衛#

在跟蹤程式碼時，torch.compile 會對執行時值做一些假設。在跟蹤過程中，我們會生成“守衛”，這些守衛是用於檢查這些假設的執行時檢查。守衛會在後續呼叫已編譯函式時執行，以確定我們是否可以重用先前編譯的程式碼。執行時檢查的示例包括常量值、型別和物件 ID。

下面是一個生成的守衛示例。TENSOR_MATCH 守衛會檢查輸入的型別、裝置、dtype、形狀等。

@torch.compile
def fn(x):
    return x + 1

print(fn(torch.ones(3, 3)))

tensor([[2., 2., 2.],
        [2., 2., 2.],
        [2., 2., 2.]])

GUARDS:

TREE_GUARD_MANAGER:
+- RootGuardManager
| +- LAMBDA_GUARD: torch._functorch.aot_autograd.utils.top_saved_tensors_hooks ids == None  # _dynamo/output_graph.py:688 in init_ambient_guards
| +- DEFAULT_DEVICE: utils_device.CURRENT_DEVICE == None                           # _dynamo/output_graph.py:676 in init_ambient_guards
| +- GLOBAL_STATE: ___check_global_state()
| +- TORCH_FUNCTION_MODE_STACK: ___check_torch_function_mode_stack()
| +- GuardManager: source=L['x'], accessed_by=FrameLocalsGuardAccessor(key='x', framelocals_idx=0), type=<class 'torch.Tensor'>, tag_safe=(True, False)
| | +- TENSOR_MATCH: check_tensor(L['x'], Tensor, DispatchKeySet(CPU, BackendSelect, ADInplaceOrView, AutogradCPU), torch.float32, device=None, requires_grad=False, size=[3, 3], stride=[3, 1])  # return x + 1  # mp/ipykernel_699/1068332425.py:3 in fn
| | +- NO_HASATTR: hasattr(L['x'], '_dynamo_dynamic_indices') == False           # return x + 1  # mp/ipykernel_699/1068332425.py:3 in fn

Guard eval latency = 569.96 us

重新編譯#

如果先前編譯程式碼的每個例項的守衛都失敗，那麼 torch.compile 必須“重新編譯”該函式，這需要再次跟蹤原始程式碼。在下面的示例中，由於檢查張量引數形狀的守衛失敗，因此需要重新編譯。

@torch.compile
def fn(x):
    return x + 1

print(fn(torch.ones(3, 3)))
print(fn(torch.ones(4, 4)))

tensor([[2., 2., 2.],
        [2., 2., 2.],
        [2., 2., 2.]])
tensor([[2., 2., 2., 2.],
        [2., 2., 2., 2.],
        [2., 2., 2., 2.],
        [2., 2., 2., 2.]])

Recompiling function fn in /tmp/ipykernel_699/420870727.py:1
    triggered by the following guard failure(s):
    - 3/0: tensor 'x' size mismatch at index 0. expected 3, actual 4

動態形狀#

torch.compile 最初假設張量形狀是靜態/恆定的，並基於這些假設進行守衛。透過使用“動態形狀”，我們可以讓 torch.compile 生成可以接受不同形狀的張量輸入的已編譯程式碼 - 我們避免了每次形狀不同時都重新編譯。預設情況下，在 torch.compile(dynamic=None) 中啟用了自動動態形狀 - 如果由於形狀不匹配導致編譯失敗，則會嘗試使用動態形狀進行重新編譯。動態形狀也可以完全啟用（dynamic=True）或停用（dynamic=False）。

下面，我們啟用了動態形狀，並注意到我們不再需要重新編譯。

@torch.compile(dynamic=True)
def fn(x):
    return x + 1

print(fn(torch.ones(3, 3)))
print(fn(torch.ones(4, 4)))

tensor([[2., 2., 2.],
        [2., 2., 2.],
        [2., 2., 2.]])
tensor([[2., 2., 2., 2.],
        [2., 2., 2., 2.],
        [2., 2., 2., 2.],
        [2., 2., 2., 2.]])

create_env
create_symbol s77 = 3 for L['x'].size()[0] [2, int_oo] return x + 1  # mp/ipykernel_699/1458103805.py:3 in fn (_dynamo/variables/builder.py:3508 in <lambda>), for more info run with TORCHDYNAMO_EXTENDED_DEBUG_CREATE_SYMBOL="s77" or to suppress this message run with TORCHDYNAMO_EXTENDED_ADVICE="0"
create_symbol s77 duck sized L['x'].size()[1]
eval False == False [statically known]
eval False == False [statically known]
produce_guards
track_symint L['x'].size()[0] s77 None
track_symint L['x'].size()[1] s77 None
track_symint L['x'].stride()[0] s77 None
track_symint L['x'].stride()[1] 1 None
track_symint L['x'].storage_offset() 0 None
Skipping guard L['x'].stride()[1] == 1
Skipping guard L['x'].storage_offset() == 0

有關動態形狀的更多資訊，請參閱 動態形狀手冊。
